Hello Circuit
My very first circuit design. Not 100% done but enough to put it on the 'fridge. ;-)

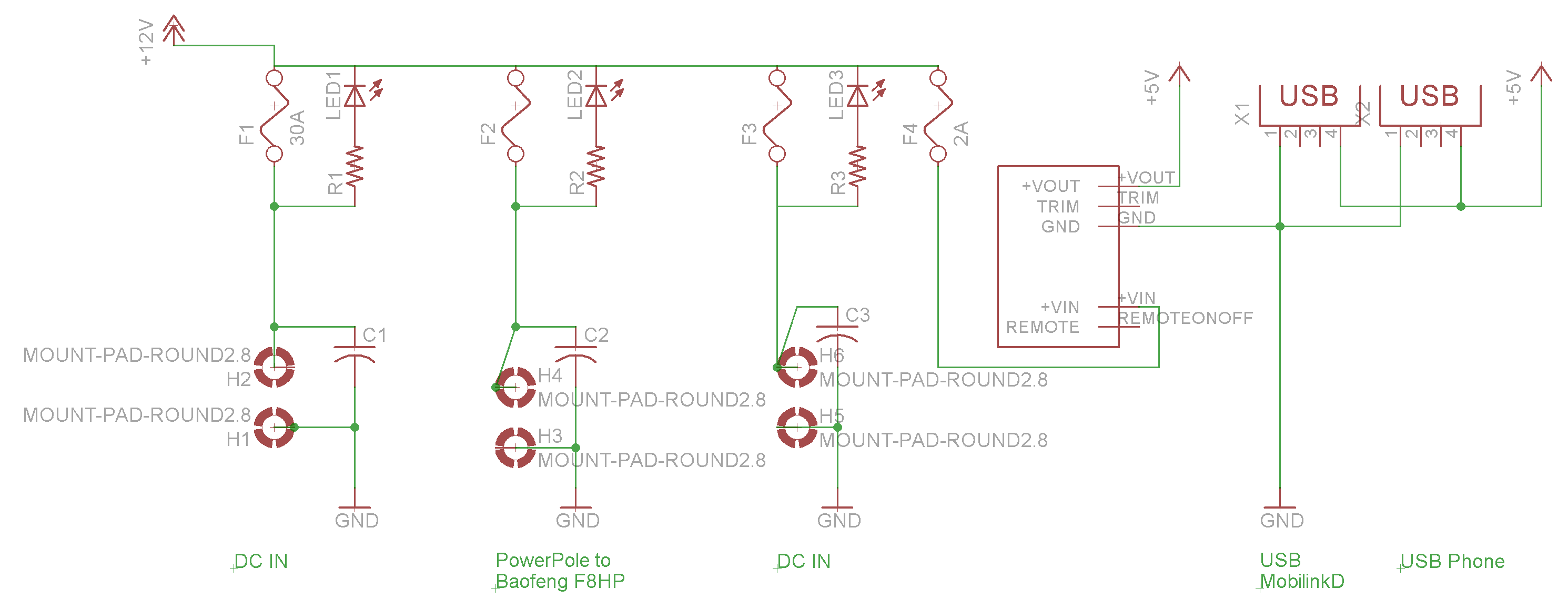

This is a board I want to make that will be used to take a DC power source and share it with a radio, mobilinkd TNC2, and a phone. I think I'll actually add the mobilinkd board to the design and hardware it to the power source. This will be used for mobile APRS operations.
Credits for the virtual help and concepts:
- RPC Electronics EagleCAD Beginner's Tutorial
- James Patterson's (@M1DST) Powerpole Distribution Project
- Looking at the inside of RIGRunner 4004U
