I wanted to see what was inside the Baofeng BL-5 Battery Eliminator, so I took it apart. Here are the pictures.

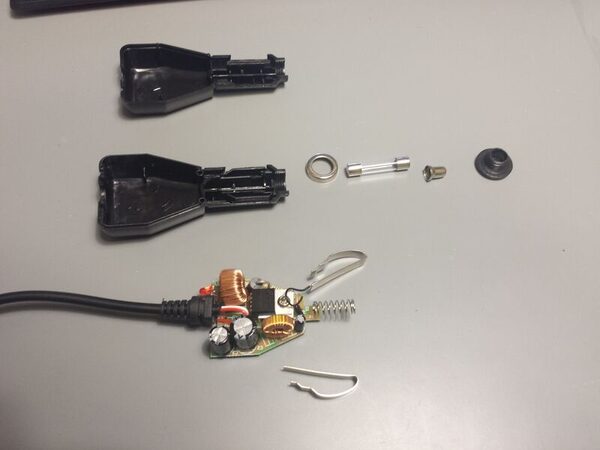

To disassemble, unscrew the tip which hold in the fuse.

To disassemble, unscrew the tip which holds in the fuse.

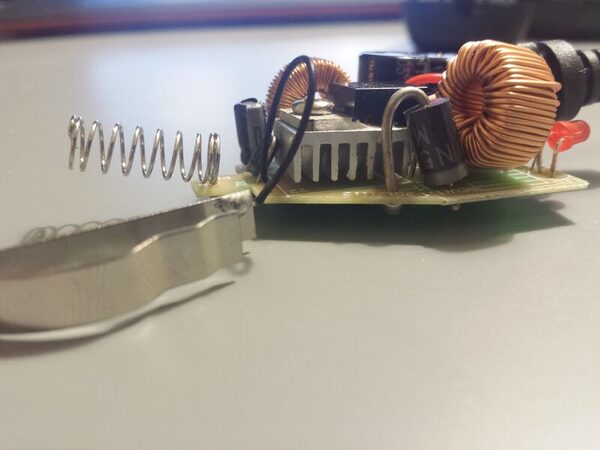

IMG_20150504_155214

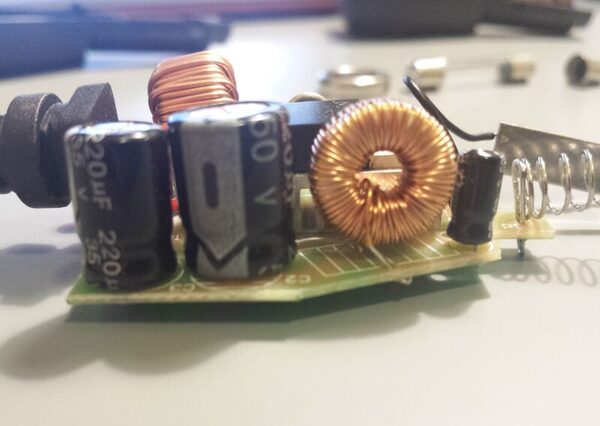

IMG_20150504_155148(2)

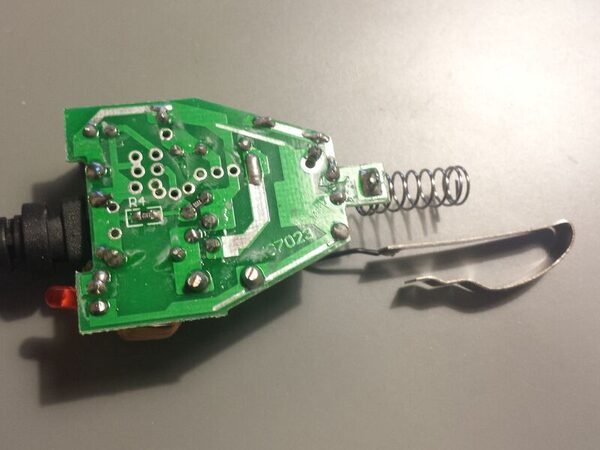

IMG_20150504_155101 (2)

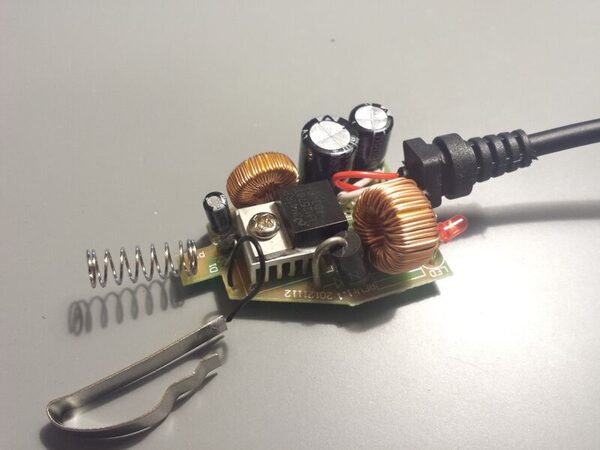

IMG_20150504_155232

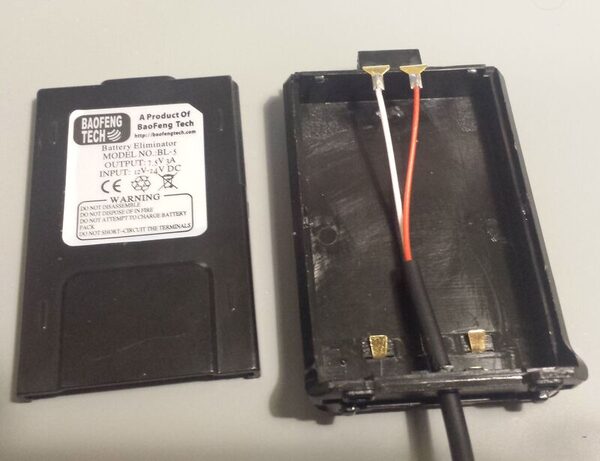

Notice the three connectors on the back are wired to nothing.

Notice the three connectors on the back are wired to nothing.
